P-Line Pinion gearbox
P-Line Pinion gearbox
Couldn't load pickup availability
This is for a gearbox only. You will also need cranks, a DS2 shifter, and a front sprocket (either belt or chain).
DESIGN OF THE GEARBOX TYPES
Common to all gearboxes is the spur gearing consisting of two sub-units connected in sequence. The individual gear ratios are derived by matching the two sub-units with various cog pairings. The P1.18 gearbox is built using a 6-gear unit mated to a 3-gear unit – a 6 x 3 gearing type. The P1.12 gearbox is a 4 x 3 type.
P1.12
Gearing optimized for touring use, from trekking to MTB. With a 600 % gear range, the P1.12 transmission far exceeds the performance of a comparable derailleur.

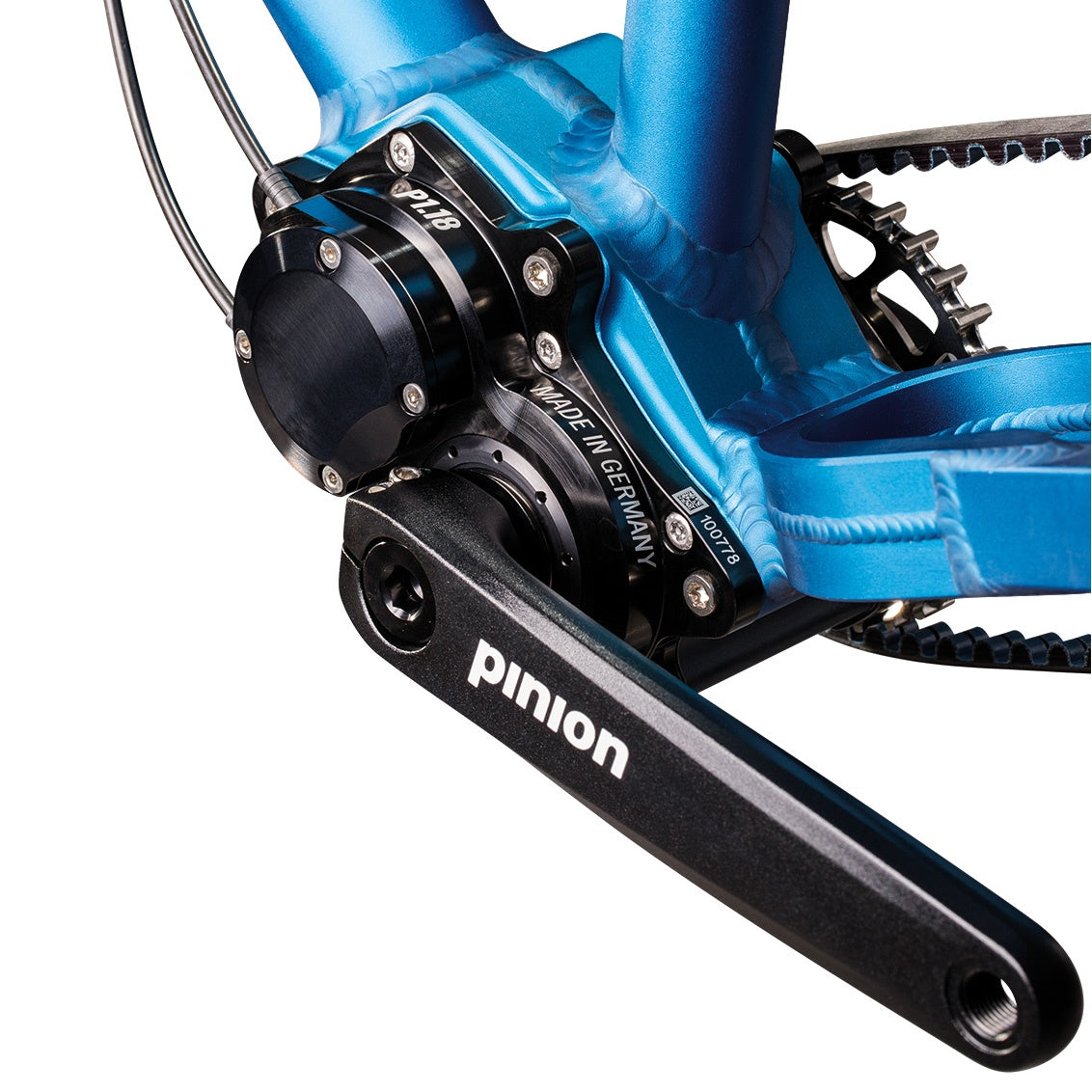

P1.18
18 gears are used exclusively in our flagship P1.18. The unmatched overall gear range with equally spaced gear steps is the reference for bike touring and bikepacking.
![]() |
![]() |
|
---|---|---|
Number of gears
|
18 | 12 |
Total range %
|
636 | 600 |
Step size %
|
11.5 | 17.7 |
Easiest gear
|
1.82 | 1.82 |
Fastest Gear
|
0.29 | 0.3 |
Gearbox weight
|
2700 g | 2350 g |
